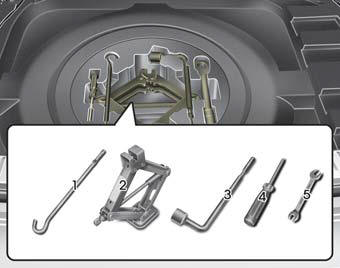

The jack, jack handle, and wheel lug nut wrench are stored in the luggage compartment. Pull up the luggage box cover to reach this equipment.
(1) Jack handle
(2) Jack
(3) Wheel lug nut wrench
(4) Screw driver (phillips and flat-head)
(5) Spanner
Jacking instructions
The jack is provided for emergency tire changing only.
To prevent the jack from “rattling” while the vehicle is in motion, store it properly.
Follow jacking instructions to reduce the possibility of personal injury.
WARNING
Changing tires
Electronic Stability Control (ESC) OFF Indicator Light
This indicator light illuminates:
Once you set the ignition switch or Engine Start/Stop Button to the ON position.
It illuminates for approximately 3 seconds and then goes off.
When you dea ...
With central door lock switch
Locking
When pressing the door lock button (1), all vehicle doors will lock and
the indicator on the button will illuminate. If any door is unlocked, the indicator
will turn off.
If the ...
Engine Coolant Temperature Warning Light
This warning light illuminates:
When the engine coolant temperature is above 248°F (120°C). This means that
the engine is overheated and may be damaged. If your vehicle is overheated,
refe ...
