Kia K900: Warning type - BSD (Blind Spot Detection) / LCA (Lane Change Assist) - Blind spot detection system (BSD) - Driving your vehicle - KIA K900 2014-2020 Owner's ManualKia K900: Warning type

The system will activate when:

1.The system is on

2.Vehicle speed is above about 18.6 mph (30 km/h)

3.Other vehicles are detected in the rear side

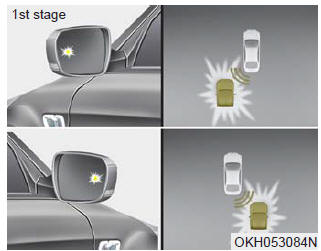

If a vehicle is detected within the boundary of the system, a warning light will


If a vehicle is detected within the boundary of the system, a warning light will illuminate on the outside rearview mirror and the head up display.

If the detected vehicle is not in warning range, the warning will turn off according to driving conditions.

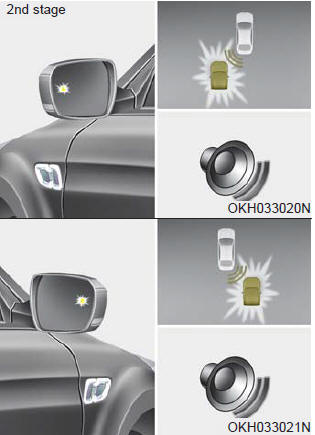

The second stage alarm will activate when:


The second stage alarm will activate when:

1.The first stage alert is on

2.The turn signal is on to change a lane

When the second stage alert is activated, a warning light will blink on the outside rearview mirror, the head up display and a alarm will sound.

If you move the turn signal switch to the original position, the second stage alert will be deactivated.

Operating conditions
The indicator on the switch will illuminate when the Blind Spot Detection System (BSD) switch is pressed with the Engine Start/Stop Button ON. If vehicle speed exceeds about 18.6 mph (30 km/h), t ...

Detecting sensor
The sensors are located inside of the rear bumper. Always keep the rear bumper clean for the system to work properly. ...
