Kia K900: Jump starting - Emergency starting - What to do in an emergency - KIA K900 2014-2019 Owner's ManualKia K900: Jump starting

Jump starting can be dangerous if done incorrectly. Therefore, to avoid harm to yourself or damage to your vehicle or battery, follow the jump starting procedures. If in doubt, we strongly recommend that you have a competent technician or towing service jump start your vehicle.

CAUTION

Use only a 12-volt jumper system. You can damage a 12-volt starting motor, ignition system, and other electrical parts beyond repair by use of a 24-volt power supply (either two 12-volt batteries in series or a 24-volt motor generator set).

WARNING

Battery

Never attempt to check the electrolyte level of the battery as this may cause the battery to rupture or explode causing serious injury.

WARNING

Battery

Jump starting procedure

✽ NOTICE

Your vehicle has a battery in the trunk compartment, but when you jump start your vehicle, use the jumper terminal in the engine compartment.

1.Make sure the booster battery is 12-volt and that its negative terminal is grounded.

2.If the booster battery is in another vehicle, do not allow the vehicles to touch.

3.Turn off all unnecessary electrical loads.

4.Open the engine hood.

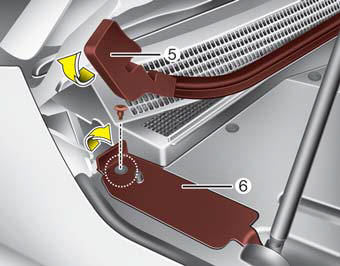

5.Lift the end of strip (5) up.


5.Lift the end of strip (5) up.

6.Press the fastener head with screw driver and then pull the fastener out.

7.Lift the rear portion of small service cover (6) up and then remove the service cover.

(A) : for assemble


(A) :

for assemble

 (B) :

for remove

8.Press the fastener head with screw driver and then pull the fastener out from main service cover (7).

9.Pull the main service cover over 0.28 in (7 mm) to toward the front of the vehicle.

10. Lift the main service cover up and then remove the main service cover. Be careful not to damage the holder under the main service cover.

11. Connect the jumper cables in the exact sequence shown in the illustration. First connect one end of a jumper cable to the positive terminal of the jump start connector (1), then connect the other end to the positive terminal on the booster battery (2).

Proceed to connect one end of the other jumper cable to the negative terminal of the booster battery (3), then the other end to the negative terminal of the jump start connector (4). Do not connect it to or near any part that moves when the engine is cranked.

Do not allow the jumper cables to contact anything except the correct battery terminals or the correct ground. Do not lean over the battery when making connections.

CAUTION

Battery cables

Do not connect the jumper cable from the negative terminal of the booster battery to the negative terminal of the discharged battery. This can cause the discharged battery to overheat and crack, releasing battery acid.

12. Start the engine of the vehicle with the booster battery and let it run at 2,000 rpm, then start the engine of the vehicle with the discharged battery.
