Kia K900: Instrument panel fuse replacement - Fuses - Maintenance - KIA K900 2014-2022 Owner's ManualKia K900: Instrument panel fuse replacement

1.Turn the ignition switch and all other switches off.


1.Turn the ignition switch and all other switches off.

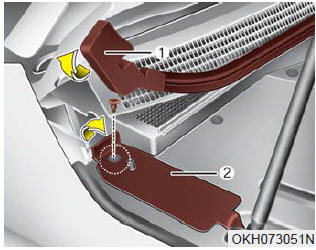

2.Lift the end of strip (1) up.


2.Lift the end of strip (1) up.

3.Press the fastener head with screw driver and then pull the fastener out.

4.Lift the rear portion of small service cover (2) up and then remove the service cover.

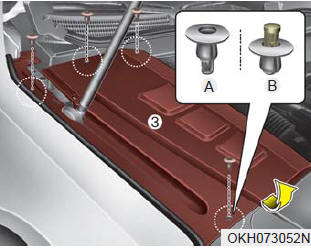

(A) : for assemble


(A) :

for assemble

(B) :

for remove

5.Press the fastener head with screw driver and then pull the fastener out from main service cover (3).

6.Pull the main service cover over 7mm (0.28 in) to toward the front of the vehicle.

7.Lift the main service cover up and then remove the main service cover. Be careful not to damage the holder under the main service cover.

8.Open the fuse panel cover.

9.Pull the suspected fuse straight out. Use the fuse puller provided in the engine compartment fuse panel.

10. Check the removed fuse; replace it if it is blown.

11. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized K900 Kia dealer.

If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.

If the headlights or other electrical components do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced.

Fuse switch

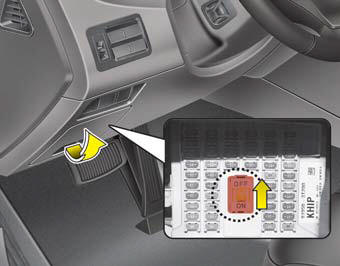

Always put the transportation fuse switch at the ON position.


Always put the transportation fuse switch at the ON position.

If you move the switch to the OFF position, some items such as the audio and digital clock must be reset and the smart key may not work properly.

CAUTION

✽ NOTICE

If you need to park your vehicle for prolonged periods more than 1 month, move the transportation fuse switch to the OFF position to prevent the battery being discharged.
